HIKVISION IP Based Wireless Video Door Phone (DS-KIS603-P) 2 Years Warranty

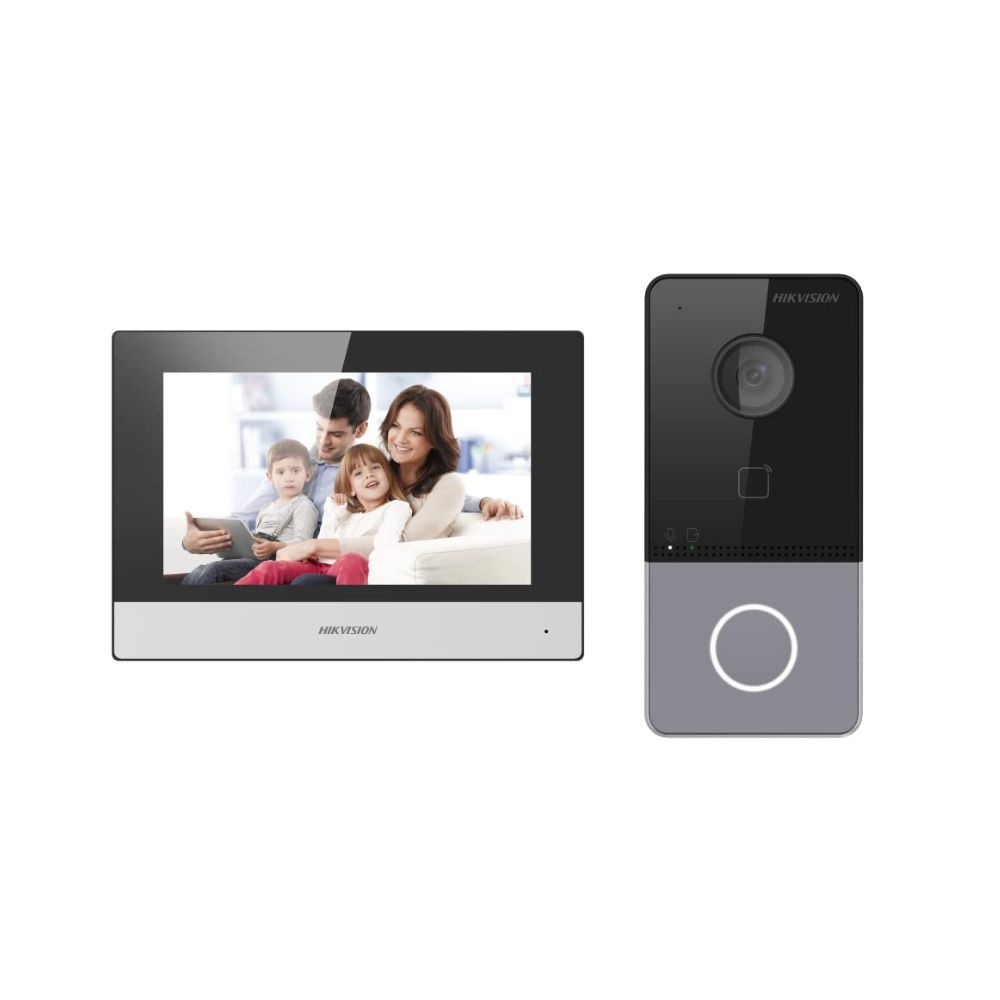

HIKVISION DS-KIS603-P IP Wireless Video Door Phone Kit

The HIKVISION DS-KIS603-P is a smart IP-based video door phone system designed for modern homes, apartments, and small office setups. With high-definition video, two-way audio, and mobile access, it provides advanced visitor management and entry control from anywhere.

Key Features:

• 2MP HD Outdoor Door Station
  Captures crystal-clear video with a wide-angle lens and built-in IR night vision for day and night security.

• 7” Indoor Touchscreen Monitor
  Features a user-friendly interface with 1024×600 resolution, supporting call answering, video preview, door unlocking, and camera monitoring.

• Two-Way Audio Communication
  High-quality built-in mic and speaker with echo cancellation and noise reduction for clear conversations.

• Remote Access via Mobile App
  Supports real-time notifications, remote unlocking, live video streaming, and call answering from your smartphone.

• Wi-Fi and Ethernet Support
  The indoor monitor supports both wired and wireless connections for flexible installation.

• PoE Support
  Simplifies installation by using a single cable for power and data on compatible networks.

• Weather-Resistant Outdoor Unit
  IP65-rated for outdoor durability, operating in a wide temperature range from -40°C to +53°C.

• Expandable System
  Supports up to 16 IP cameras and multiple alarm inputs and outputs for integrated home security.

• Storage Capability
  Indoor monitor supports microSD cards up to 32GB for event recording and snapshots.

Technical Specifications:

• Outdoor Station Camera: 2MP, wide-angle lens, IR night vision up to 3 meters

• Indoor Station: 7” color capacitive touch screen

• Audio: Two-way with echo cancellation

• Power: PoE (IEEE 802.3af) or 12V DC

• Connectivity: Ethernet and Wi-Fi (indoor unit)

• Operating Temperature: Outdoor: -40°C to +53°C; Indoor: -10°C to +55°C

• Weather Rating (Outdoor Unit): IP65

• Expandable Support: Up to 16 IP cameras, alarm I/O, RS-485, and door relay output

• Storage: MicroSD card support up to 32GB (indoor unit)

• Dimensions:

  • Outdoor Station: Approx. 138 × 65 × 27 mm

  • Indoor Monitor: Approx. 200 × 140 × 15 mm

Ideal For:

Homes, villas, small businesses, and apartment entries where high-quality video communication and remote access are essential for safety and convenience.
