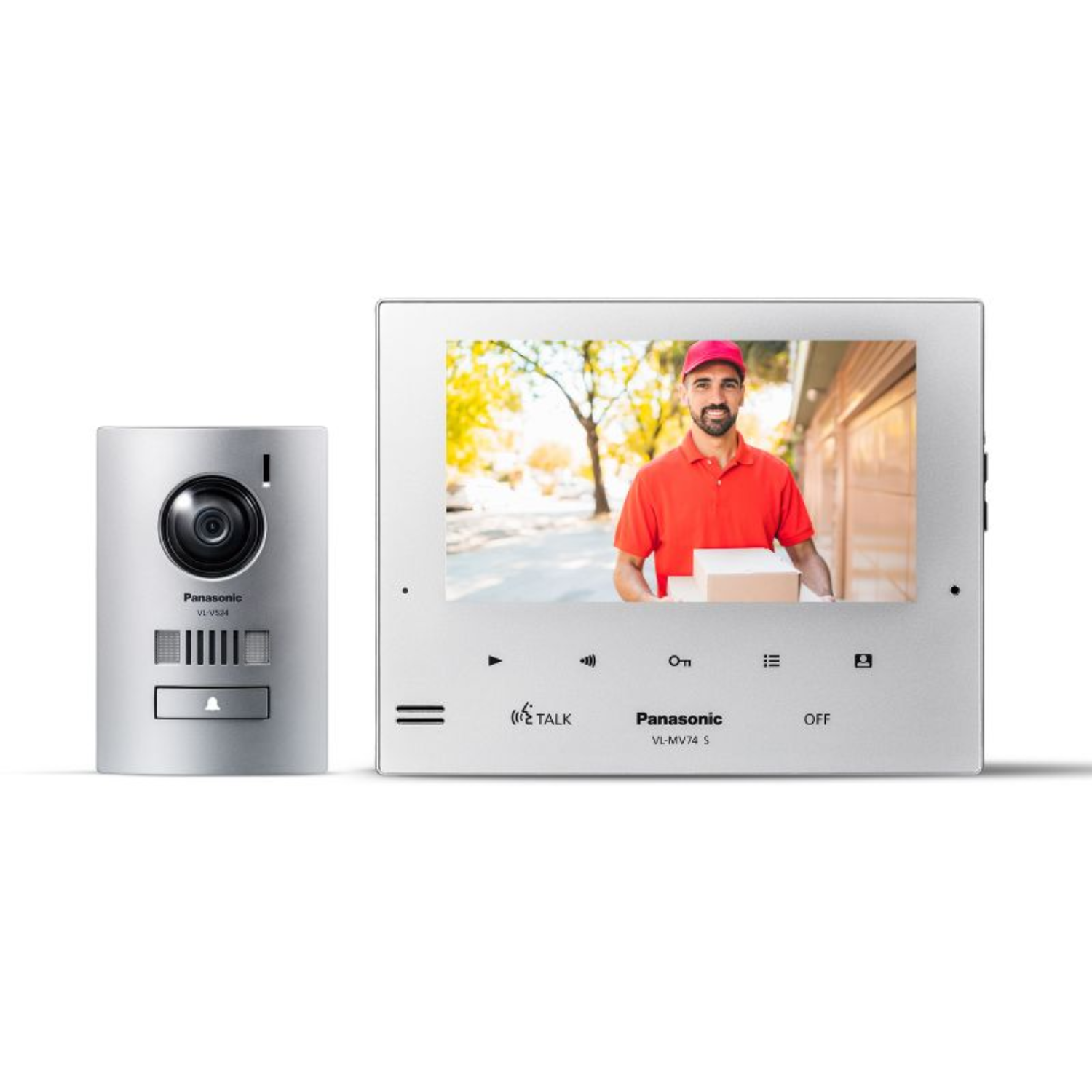

Panasonic VL-SV74SX – 7″ Video Door Phone System
The Panasonic VL-SV74SX is a sleek and powerful video intercom system designed to enhance your home or office security. With a 7-inch color LCD screen, HD camera, and features like voice changer, picture recording, and night vision, it offers convenience, safety, and modern design in one package.

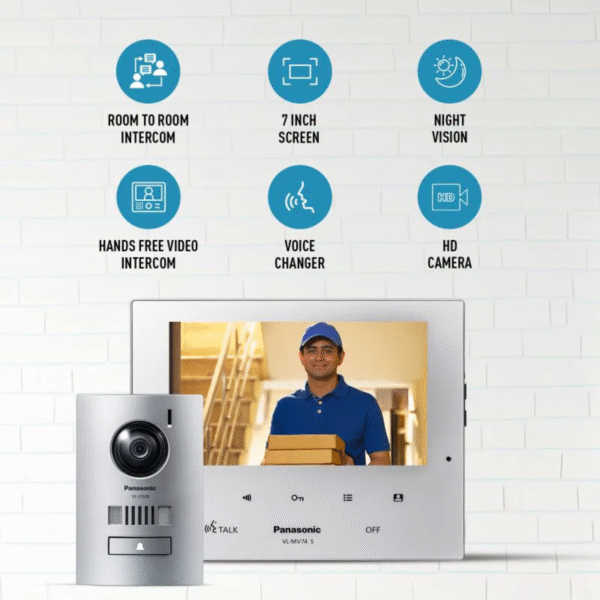

🔧 Key Features
-

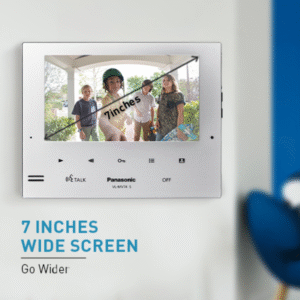

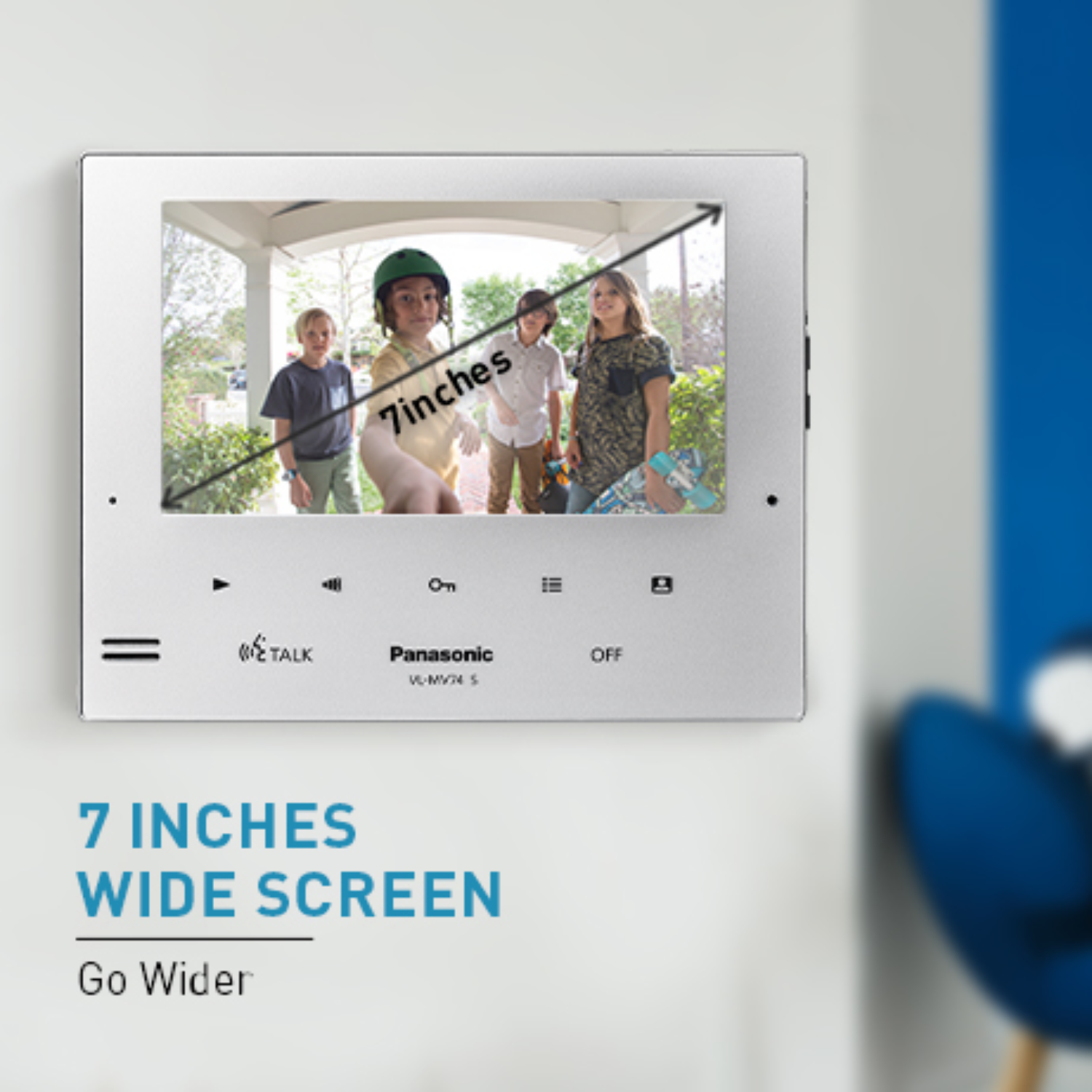

7” Wide Touch-Screen Monitor
Large WVGA display with flat touch buttons for clear visuals and easy operation. -
HD Door Station Camera (1.3 MP)
Captures sharp, high-quality images with a wide-angle lens to monitor your doorstep effectively. -
Night Vision with LED Illumination
Built-in LED lighting allows color image capture even in low-light conditions up to 50 cm. -
Voice Changer Function
Converts voice to help protect user identity—ideal for female users or vulnerable individuals. -
Auto Picture Recording
Stores up to 50 visitor sessions, with 4 images per session saved automatically for security logs. -
Room-to-Room Communication
Supports intercom functionality between up to 4 connected monitors, perfect for larger homes or offices. -
Electric Lock Control
Supports remote unlocking of doors and gates directly from the monitor. -
Expandable System
Supports up to 3 additional monitors, allowing communication and monitoring across multiple rooms.
📦 Technical Specifications
Attribute | Details |
---|---|
Monitor Display | 7″ Color LCD Touch Panel (WVGA 800×480) |
Camera Resolution | 1.3 MP CMOS Sensor |
Viewing Angle | Horizontal: ~85°, Vertical: ~54° |
Picture Recording | Up to 50 sessions (4 images each) |
Night Vision Range | ~50 cm with LED |
Power Supply | AC 220–240V |
Power Consumption | Standby: ~2W, Operating: ~11W |
Operating Temperature | Monitor: 0–40°C, Door Unit: –15–55°C |
Mounting Options | Wall-mounted |

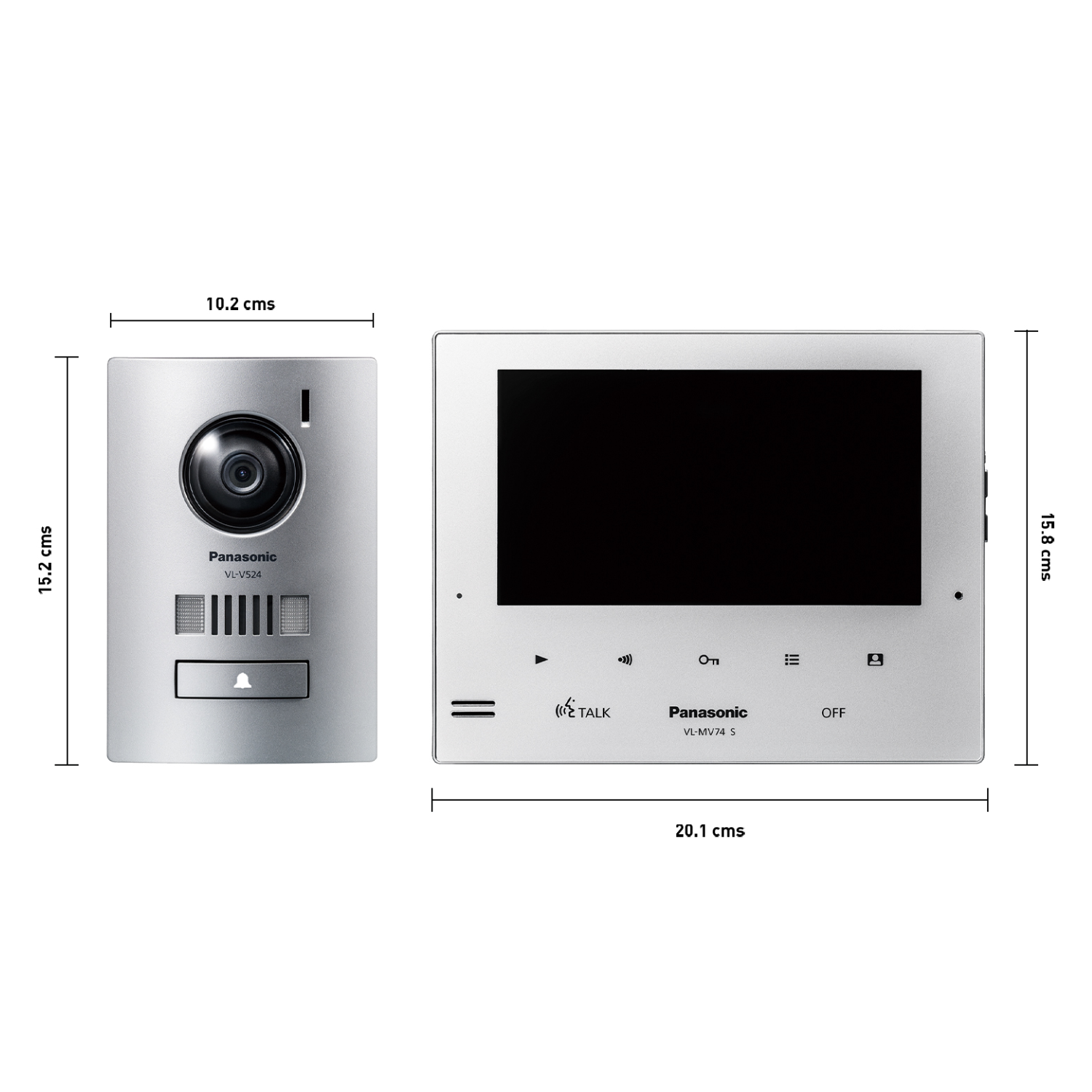

Dimensions | Monitor: 158×201×25 mm |
Door Unit: 152×102×35 mm |
✅ Ideal For:
-
Residential homes
-
Apartments and gated communities
-
Small offices and clinics
-
Shops and customer service areas
